Climate Data Store Tutorial

logo


Climate Data Store Tutorial

This notebook provides you an introduction to the Copernicus Climate Data Store (CDS), an overview of the type of data that can be accessed and gives practical examples how to access and retrieve data from the CDS.

Outline

  • 1 - About

  • 2 - C3S data retrieval

    • 2.1 - Access data interactively via the CDS web interface

    • 2.2 - Access data programmatically with the CDS API

    • 2.3 - Further resources

  • 3 - Example data request

How to access the notebook

This tutorial is in the form of a Jupyter notebook. You will not need to install any software for the training as there are a number of free cloud-based services to create, edit, run and export Jupyter notebooks such as this. Here are some suggestions (simply click on one of the links below to run the notebook):

Binder

Kaggle

Colab

NBViewer

Binder

Kaggle

Colab

NBViewer

(Binder may take some time to load, so please be patient!)

(will need to login/register, and switch on the internet via settings)

(will need to run the command !pip install cartopy before importing the libraries)

(this will not run the notebook, only render it)

If you would like to run this notebook in your own environment, we suggest you install Anaconda, which contains most of the libraries you will need. You will also need to install Xarray for working with multidimensional data in netcdf files, and the CDS API (pip install cdsapi) for downloading data programatically from the CDS.

About

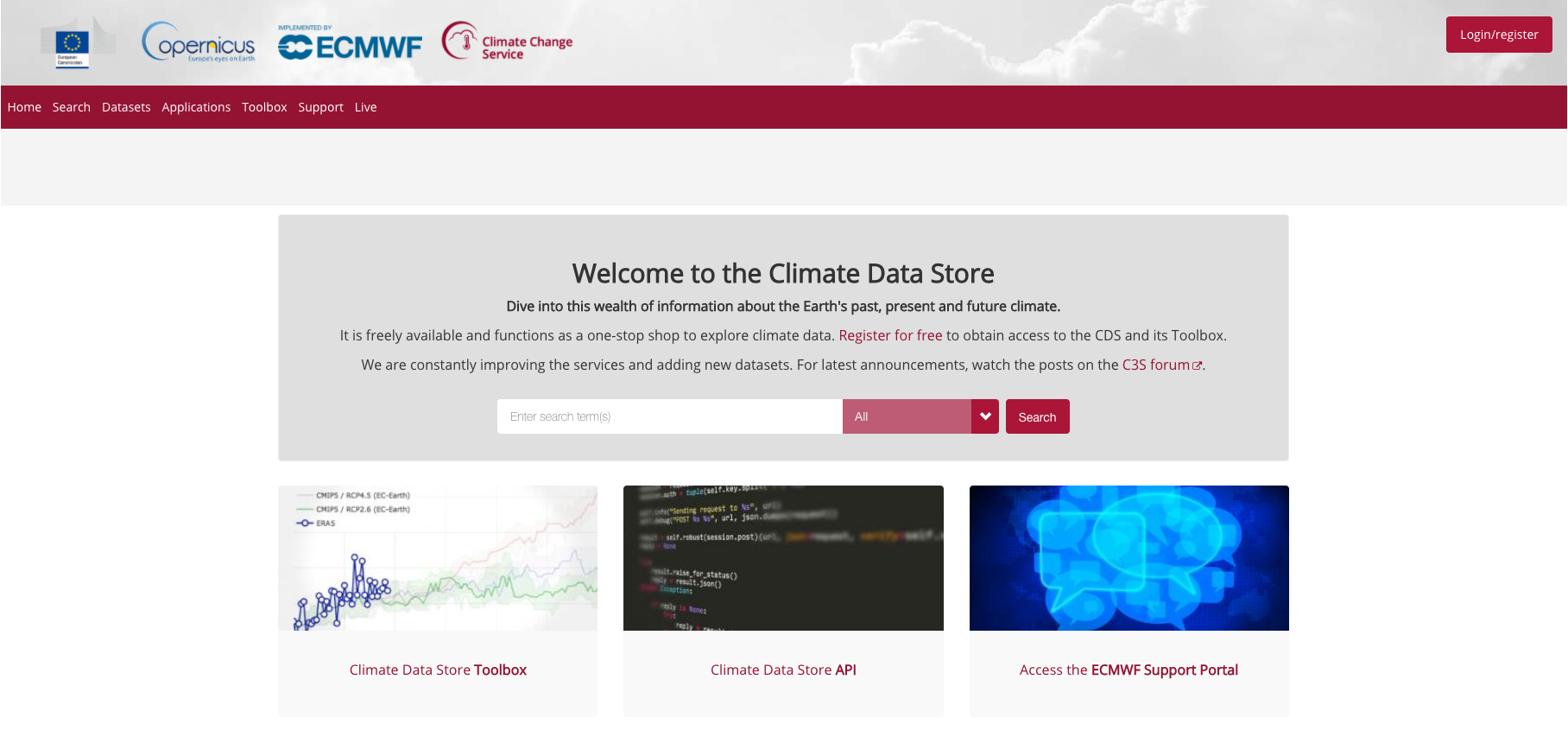

The Copernicus Climate Data Store (CDS) is the data access portal of the Copernicus Climate Change Service (C3S) and offers access to data and applications about the Earth’s past, present and future climate.

logo

Data retrieval

There are two ways to access data from the Copernicus Climate Data Store (CDS):

Access data interactively via the CDS web interface

The CDS web interface allows you to interactively browse, select and download datasets offered by the CDS. First, under Datasets, you can browse and select the dataset you are interested in. In a second step, you can then specify details of the data download form you wish to submit.

Filter and select a dataset

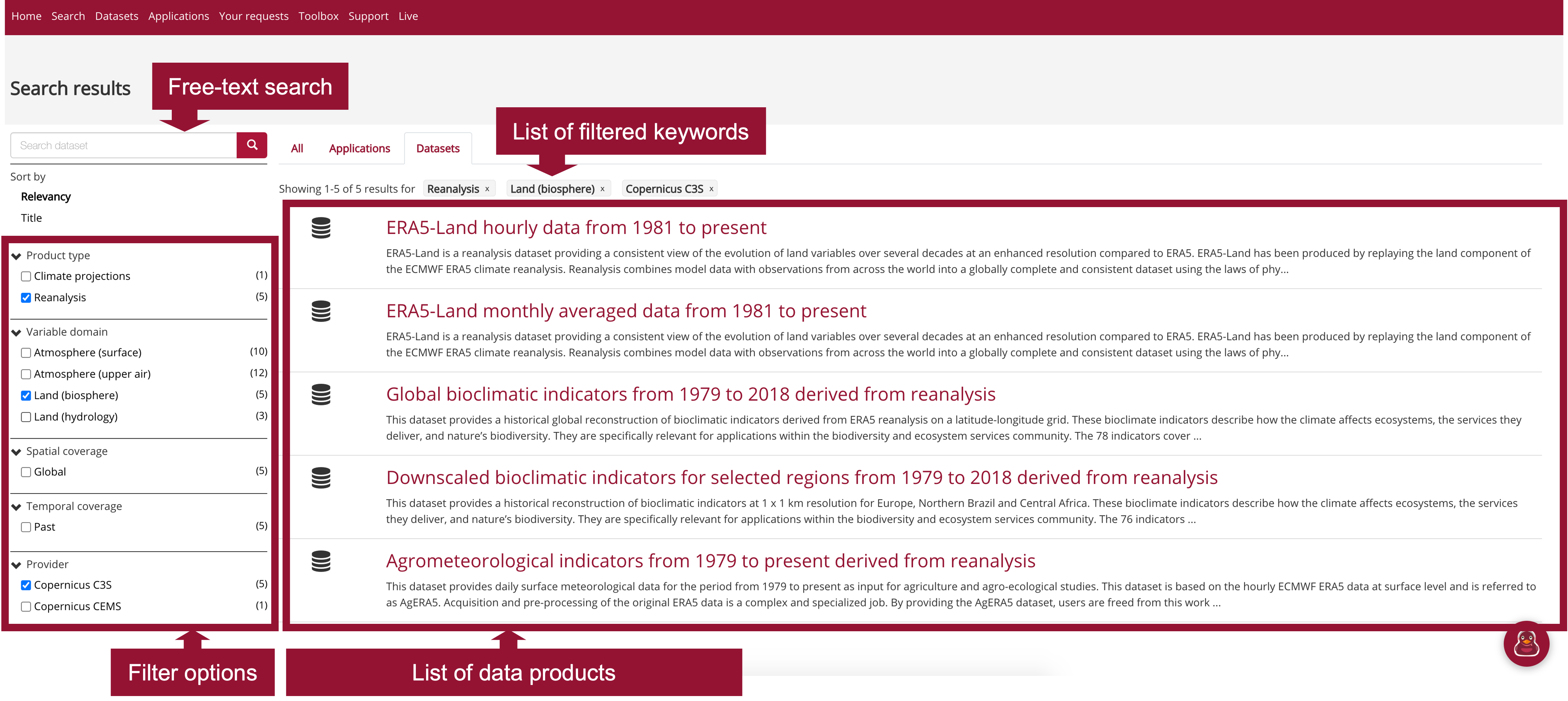

As a first step, you can browse and filter the dataset you are interested in. The Datasets interface allows you either to select data based on different categories, e.g. Product type, Variable domain, Spatial / Temporal coverage, but also offers a free text search. The list of datasets in the main window allows you to select the dataset you are interested in.


logo


Once you selected a dataset, you then get redirected to a data description section, which provides you an overview of the chosen dataset as well as the option to specify the dataset you would like to download and to also to submit the "Download data" form.


Submit the Download data form

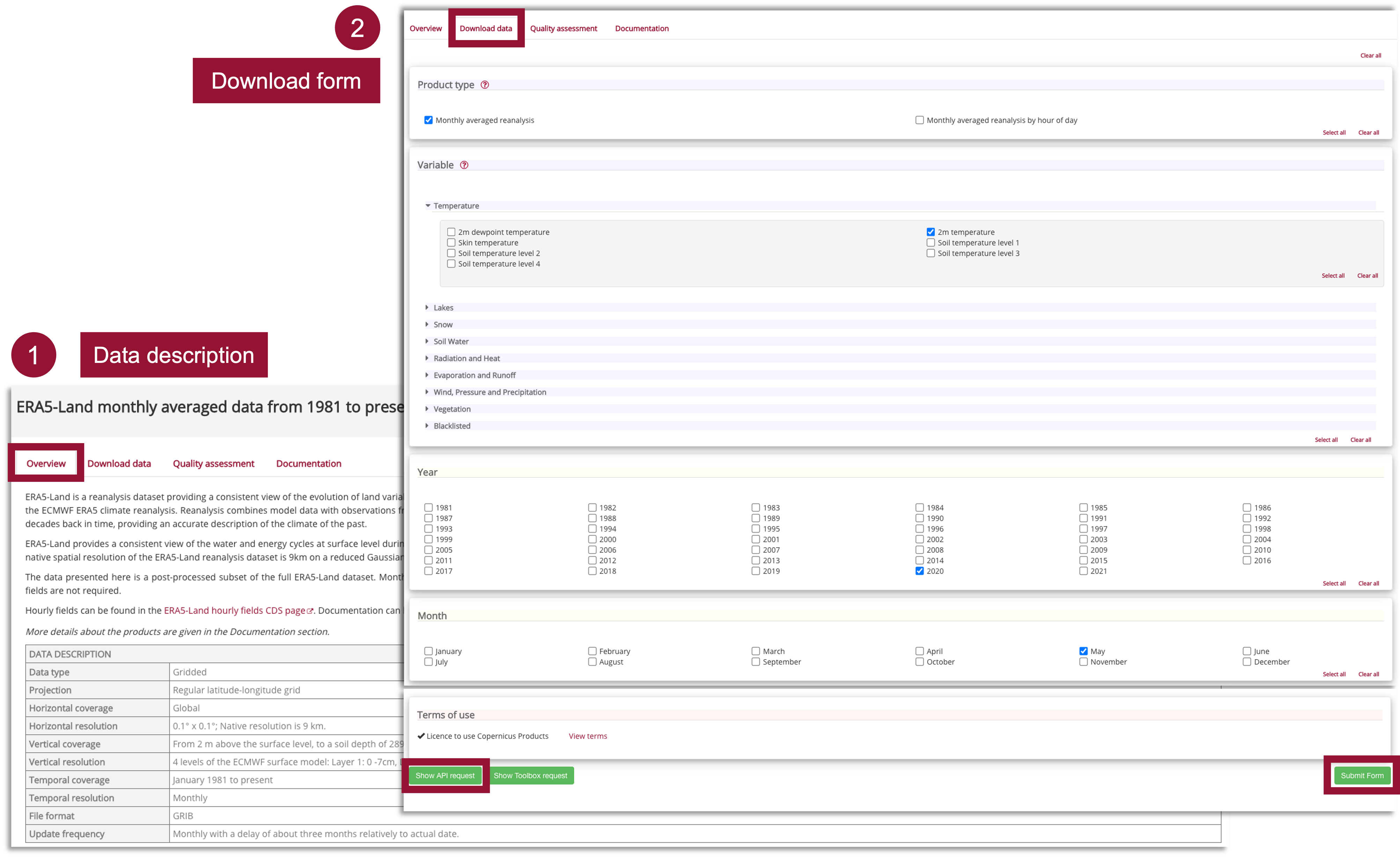

The Data description section (see 1) provides you an overview of the dataset, including a list of variables that are available. Under the tab Download data, the "Download data" form opens (see 2) which allows you to interactively filter the dataset based on specific keywords, e.g.:

  • Product type

  • Variable

  • Year / Month / Time

  • Geographical area

  • Format

At the end of the "Download data" form, you get three options: Show API request, Show Toolbox request and Submit Form. If you want to download the data interactively, the data requests will be executed as soon as you click on the Submit Form button.

Note: You need to be logged into the ADS portal and you have to accept the Terms and Conditions of the dataset before being able to download data.

You will need the Show API request, if you want to request data programmatically. See Section 2.2 for further information. You will need the Show Toolbox request if you want to request data via the CDS Toolbox. Learn more about the CDS Toolbox here.

NOTE:
Under the tab Your requests in the main menu, you can monitor the status of your data requests.

logo


Access data programmatically with the CDS API

The Climate Data Store Application Program Interface (CDS API) is a Python library which allows you to access data from the CDS programmatically. The library is available for both Python versions, Python 2.7.x and Python 3, but we recommend to use the library under Python 3. In order to use the CDS API, follow the steps below:

Install the CDS API key

  • Self-register at the CDS registration page (if you do not have an account yet)

  • Login to the CDS portal and go to the api-how-to page

  • Copy the CDS API key displayed in the black terminal window in a file under $HOME/.cdsapirc

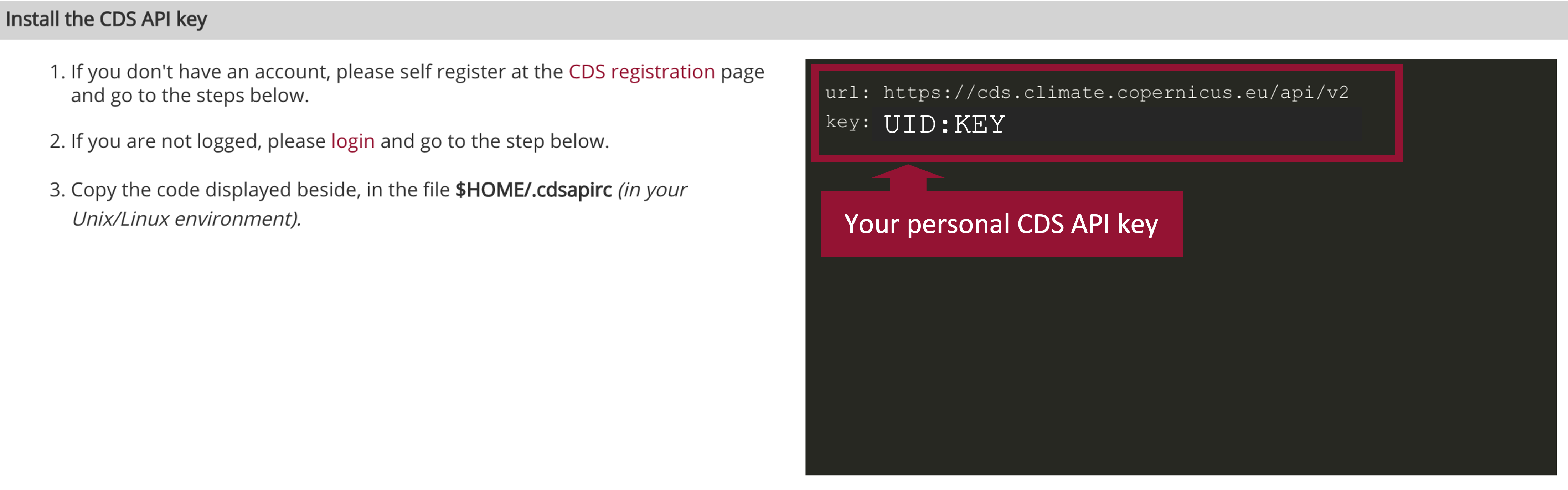

Note: You find your CDS API key displayed in the black terminal box under the section Install the CDS API key. If you do not see a URL or key appear in the black terminal box, please refresh your browser tab.

logo

The code below creates the file under your current working directory. Make sure to replace the ################ with your personal CDS API key.

%%writefile ./.cdsapirc

url: https://cds.climate.copernicus.eu/api/v2
key: ##############################

Overwriting ./.cdsapirc

Alternative: Set CDS API credentials manually

Alternatively, you can also define variables for url and key. These variables can then be set when you define the cdsapi.Client(url=URL, key=KEY) in your script (see next section for the different components of a data retrieval request).

Please note: in the workflow notebooks, we will use this modality and set manually the CDS API key information for the data retrievals.

URL = 'https://cds.climate.copernicus.eu/api/v2'
KEY = '############################'

Install the CDS API client

The next step is to install the CDS API client. You can do this with the package management system pip.

!pip install cdsapi

Requirement already satisfied: cdsapi in c:\users\cxcs\anaconda3\lib\site-packages (0.5.1)
Requirement already satisfied: tqdm in c:\users\cxcs\anaconda3\lib\site-packages (from cdsapi) (4.62.3)
Requirement already satisfied: requests>=2.5.0 in c:\users\cxcs\anaconda3\lib\site-packages (from cdsapi) (2.26.0)
Requirement already satisfied: urllib3<1.27,>=1.21.1 in c:\users\cxcs\anaconda3\lib\site-packages (from requests>=2.5.0->cdsapi) (1.26.7)
Requirement already satisfied: charset-normalizer~=2.0.0 in c:\users\cxcs\anaconda3\lib\site-packages (from requests>=2.5.0->cdsapi) (2.0.4)
Requirement already satisfied: idna<4,>=2.5 in c:\users\cxcs\anaconda3\lib\site-packages (from requests>=2.5.0->cdsapi) (3.2)
Requirement already satisfied: certifi>=2017.4.17 in c:\users\cxcs\anaconda3\lib\site-packages (from requests>=2.5.0->cdsapi) (2021.10.8)
Requirement already satisfied: colorama in c:\users\cxcs\anaconda3\lib\site-packages (from tqdm->cdsapi) (0.4.4)

Use the CDS API client for data access

Once the CDS API is installed, it can be used to request data from the Climate Data Store.

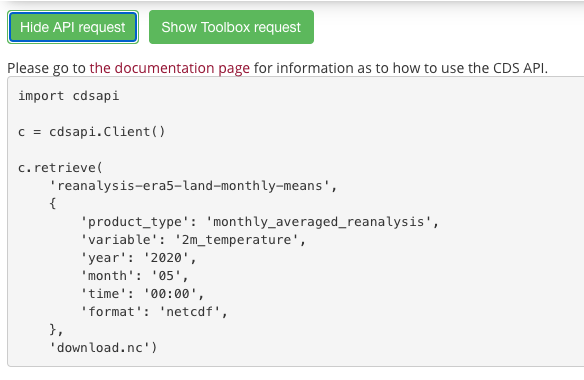

Below, you see the principle of a data retrieval request. You always have to make sure to first import the cdsapi and define a cdsapi.Client() before you are able to execute an API request. You can use the web interface to browse through the datasets. At the end of the "Download data" form, there is the option to choose Show API request. If you click this button, the API request appears (see example below), which you can copy paste into your coding workflow.


logo


NOTE:
For data originating from ECMWF's Meteorological and Archival System (MARS), data is stored on a grid with longitudes from 0 to 360 degrees. It can be reprojected to a regular geographic latitude-longitude grid, by setting the keyword argument area and grid. Per default, data is retrieved in GRIB. If you wish to retrieve the data in netCDF, you have to specify it by using the keyword argument format.

Example data request

Example: ERA5-Land hourly data from 1950 to present

Data used in 113_c3s_climate_indices

CDS API name: reanalysis-era5-land

  • Variable: ['10m_u_component_of_wind', '10m_v_component_of_wind','2m_temperature']

  • Year: [1981 to 2020]

  • Month: 12

  • Day: 15

  • Time: 12:00

  • Area: [60, -10, 35, 30] # North, West, South, East

  • Format: netcdf

Note: the request above makes use of the keyword area, which enable you to retrieve only a geographical subset. The bounding box information are set as follows: [N, W, S, E]. When this keyword is set, the data is automatically projected to a grid from [-180, 180].

import cdsapi
c = cdsapi.Client()
c.retrieve(
    'reanalysis-era5-land',
    {
        'variable': [
            '10m_u_component_of_wind', '10m_v_component_of_wind', '2m_temperature',
        ],
        'year': [
            '1981', '1982', '1983',
            '1984', '1985', '1986',
            '1987', '1988', '1989',
            '1990', '1991', '1992',
            '1993', '1994', '1995',
            '1996', '1997', '1998',
            '1999', '2000', '2001',
            '2002', '2003', '2004',
            '2005', '2006', '2007',
            '2008', '2009', '2010',
            '2011', '2012', '2013',
            '2014', '2015', '2016',
            '2017', '2018', '2019',
            '2020',
        ],
        'month': '12',
        'day': '15',
        'time': '12:00',
        'format': 'netcdf',
        'area': [
            60, -10, 35,
            30,
        ],
    },
    './data/era5-land_eur_1981_2020.nc')

2022-05-10 16:10:05,471 INFO Welcome to the CDS

2022-05-10 16:10:05,473 INFO Sending request to https://cds.climate.copernicus.eu/api/v2/resources/reanalysis-era5-land

2022-05-10 16:10:05,597 INFO Request is completed

2022-05-10 16:10:05,599 INFO Downloading https://download-0015-clone.copernicus-climate.eu/cache-compute-0015/cache/data1/adaptor.mars.internal-1652192377.9561815-5007-12-faebcd34-8e28-4844-9f6e-d5e3ec4e0738.nc to ./data/era5-land_eur_1981_2020.nc (23M)

  0%|                                                                                      | 0.00/23.0M [00:00<?, ?B/s]





---------------------------------------------------------------------------
FileNotFoundError                         Traceback (most recent call last)
~\AppData\Local\Temp/ipykernel_3472/1706028111.py in <module>
      1 import cdsapi
      2 c = cdsapi.Client()
----> 3 c.retrieve(
      4     'reanalysis-era5-land',
      5     {

~\Anaconda3\lib\site-packages\cdsapi\api.py in retrieve(self, name, request, target)
    348         result = self._api("%s/resources/%s" % (self.url, name), request, "POST")
    349         if target is not None:
--> 350             result.download(target)
    351         return result
    352

~\Anaconda3\lib\site-packages\cdsapi\api.py in download(self, target)
    171
    172     def download(self, target=None):
--> 173         return self._download(self.location, self.content_length, target)
    174
    175     @property

~\Anaconda3\lib\site-packages\cdsapi\api.py in _download(self, url, size, target)
    130                 ) as pbar:
    131                     pbar.update(total)
--> 132                     with open(target, mode) as f:
    133                         for chunk in r.iter_content(chunk_size=1024):
    134                             if chunk:

FileNotFoundError: [Errno 2] No such file or directory: './data/era5-land_eur_1981_2020.nc'
